Traffic Signal Controller


MICROTRANS is TOT Partner with CDAC (Government of India) for manufacturing of Adaptive Traffic Signal Controllers. This dynamic Vehicle actuated traffic control system isdesigned to address the highly heterogeneous traffic conditions by continuously assessing real-time traffic demand from vehicle detectors deployed at strategic locations. Based on the assessment, the system generates optimum signal timings for signal coordination in vehicle actuated mode of traffic signal operation, thereby minimizing stops and delay at traffic junctions and reduce overall journey time.

Salient Features

  • 32 bit Microcontroller based
  • 32 independent lamp outputs extendable up to 64 lamp output(in steps of 16)
  • 16 independent vehicle detection inputs expandable up to 20 inputs
  • Inductive loop and camera-based vehicle detection compatible
  • Integrated custom LC Display
  • Time synchronization by GPS or ATCS server
  • Lamp monitoring
  • Remote Administration and Monitoring from central computer.
  • Area Traffic Control System (ATCS) compatible
  • 12/24VDC/230VAC Operation

Cute is a vehicle actuated road traffic signal controller that controls thesignal lamps over wired medium. Cute is Area Traffic Control System (ATCS)compatible having features to perform at isolated intersections or as part of asynchronized chain of controllers. The controller supports remote monitoring andmanagement of signal plans over various medium of communication network.Optimized Solar power operation, PWM based intensity control of signal lamps, GPS/ Server based distributed time synchronization, pole mountable/plinth mountableminiature architecture are other features of Cute. Cute has beendeveloped by CDAC(T) under the "Intelligent Transportation System Endeavour(InTranSe) for Indian Cities" which is a National level Collaborative Research andDevelopment Program funded by the Department of Electronics and InformationTechnology (DeitY), Ministry of Communications and Information Technology,Government of India.


Modes of Operation

  • Pre-timed
  • Vehicle Actuated
    • Split Optimized
    • Cycle Optimized
    • Semi Actuated
  • ATCS
  • Manual Control
  • Hurry Call
  • Cable less Linking
  • Pre-timed
  • Vehicle Actuated
  • Night Flash
  • Forced Flash
  • Error detection Flash

Signal Plans

  • 32 Phases
  • 32 stages
  • 24 Cycle Plans
  • 20 Day Plans
  • 4 Week Plans
  • 20 Holiday Plans
  • 4 Season Plans
  • 4 Hurry calls
  • 12/24 VDC operation at 6 watts

Interfaces

  • RS232- to get the debug information about the controller status
  • Ethernet- communication to the ATCS server
  • USB- Firmware upgrade

Firmware Features

  • Plan entering and retrieval using user interface (LCD and keypad) and Laptop.
  • Plan execution as per Fixed, Vehicle Actuated and ATCS modes.
  • Switching of lamps as per the Signal plan
  • Time synchronization at predefined intervals by GPS.
  • ATCS communication
  • Police panel interface
  • Plan downloading and uploading facility

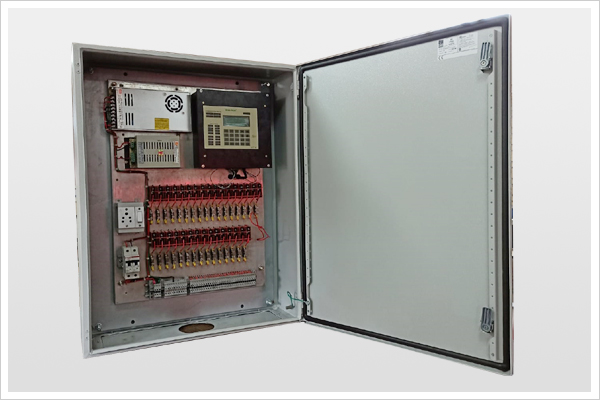

Hardware Specifications

  • AT91SAM7X512 processor with 512 K flash and 128 K RAM
  • Drives 32 lamps per controller and delivers current of 2A max per channel
  • GPS based Real Time Clock (RTC) with battery backup
  • PORTS: RJ45, USB, USB device port (USB)
  • User interface: (5X4) keypad, (20X4) characters LCD, Pluggable to Laptop/PDA
  • Vehicle Sensor Modules Interface
  • Police panel interface for immediate key access/wireless remote access(optional)

Mechanical

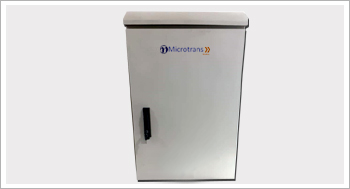

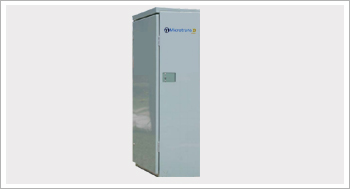

  • Plinth /Pole mountable, Weather proof cabinet

Wireless Police Panel (Optional)

  • Must be operation in free wireless band (433 Mhz or less for better performance)
  • Must have the functionality like Forced Flash, Hurry Call (4 numbers), Lamp OFF
  • Must have option to switch between both wireless and wired police panel
  • The feedback of the current operation should be in the wireless

Scalability of Vehicle Actuation Controller to ATCS in Future

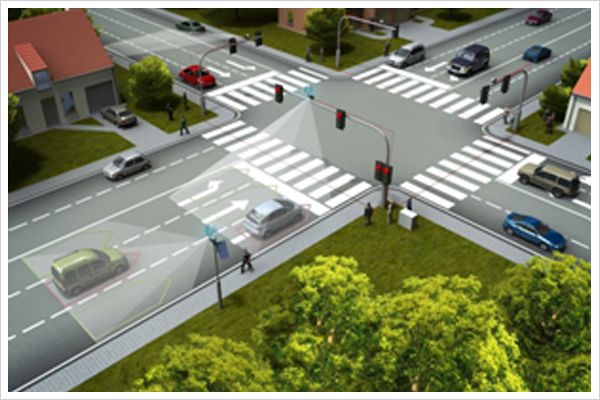

This methodology senses the traffic through non-intrusive loops, which areinstalled at appropriate positions in the junction. These sensors provide current trafficinformation to the controller through detectors mounted within the controller.

Simultaneously the data is sent to central control room server where the ATCS softwarereceives and processes the data to give proper commands to the intersectioncontrollers to allocate appropriate timings to the green signal. The controller essentiallyextends the green time corresponding to the command received from the control roomwithin the constraints of the maximum and minimum green times programmed. Thesystem thus puts in an effective control of the traffic flow throughout the area wherethe system is implemented.

Keyword : Adaptive Traffic Signal Controller, vehicle actuated Traffic Signal Controller, VA Traffic Light Controller, Density based Traffic Controller, Traffic Signal Controller, Traffic Light Controller, Traffic Controller, Signal Controller, Traffic control Unit, Area Traffic Signal Controller, Advance Traffic Signal Controller, Smart City Traffic Light Controller, Smart City Traffic Signal Controller. Traffic Signal Controller Manufacturer, Adaptive Traffic Signal Controller Manufacturer, VA Traffic Light Controller Manufacturer

Professional

12+ years professional experience

ISO 9001: 2015 Certification

EN12368, EN12966, CE and RoHS directive and IP 65 Certified

Warranty

5 years Warranty

.
